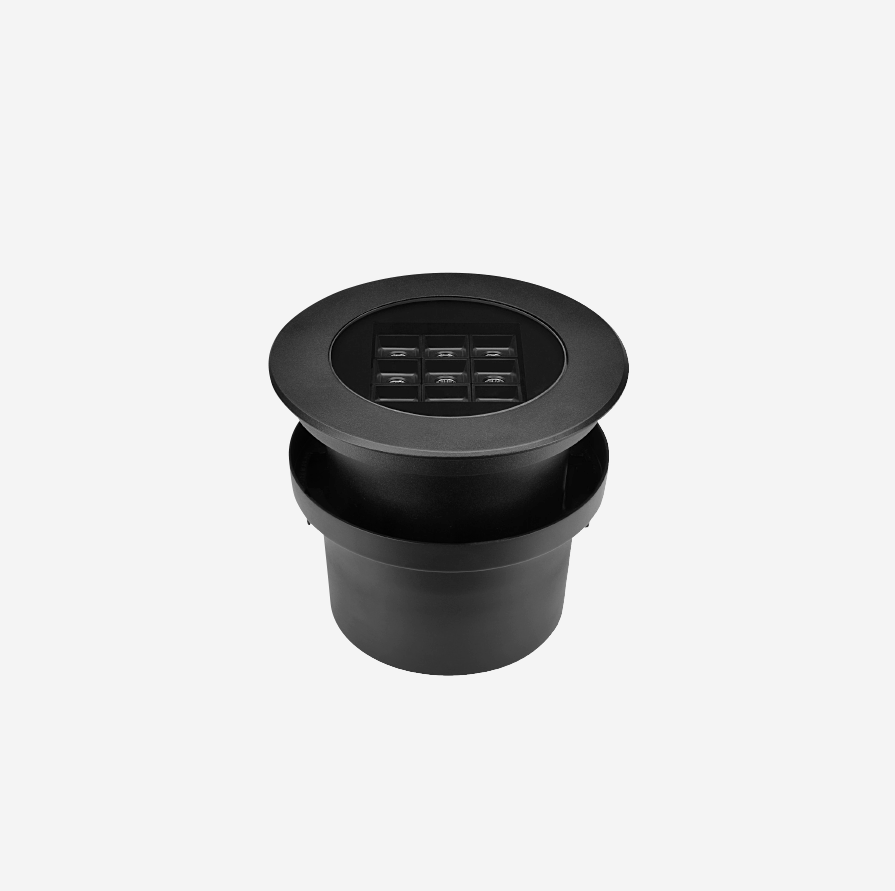

Round compact ground-recessed luminaire for outdoor installation, Phospho-chromatised and polyester powder coated die-cast copper-free aluminium body and stainless steel AISI 316 frame, tempered safety glass, moulded silicone gasket, non-visible stainless steel screws. Built-in LED driver 220-240V 50-60Hz, with 9 CREE XP-G2 LED + special optics with "invisa-light" technology. IP67 rating.
HYDROFLOOR
MEDIUM
Product IMAGE
Technical drawing
206000
HYDROFLOOR Aisi 316
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 201064.40.30.SS.1 | 8W | 4000K | 30° | 713 |
STAINLESS STEEL |
1-10V |
|
|
| 201064.27.04.SS.0 | 8W | 2700K | 45° | 618 |
STAINLESS STEEL |
ON/OFF |
|
|
| 201064.27.04.SS.1 | 8W | 2700K | 45° | 618 |
STAINLESS STEEL |
1-10V |
|
|
| 201064.27.04.SS.D | 8W | 2700K | 45° | 618 |
STAINLESS STEEL |
DALI |
|
|
| 201064.27.30.SS.0 | 8W | 2700K | 30° | 650 |
STAINLESS STEEL |
ON/OFF |
|
|
| 201064.27.30.SS.1 | 8W | 2700K | 30° | 650 |
STAINLESS STEEL |
1-10V |
|
|
| 201064.27.30.SS.D | 8W | 2700K | 30° | 650 |
STAINLESS STEEL |
DALI |
|
|
| 201064.27.10.SS.0 | 8W | 2700K | 10° | 686 |
STAINLESS STEEL |
ON/OFF |
|
|
| 201064.27.10.SS.1 | 8W | 2700K | 10° | 686 |
STAINLESS STEEL |
1-10V |
|
|
| 201064.27.10.SS.D | 8W | 2700K | 10° | 686 |
STAINLESS STEEL |
DALI |
|
|
| 201064.40.04.SS.0 | 8W | 4000K | 45° | 677 |
STAINLESS STEEL |
ON/OFF |
|
|
| 201064.40.04.SS.1 | 8W | 4000K | 45° | 677 |
STAINLESS STEEL |
1-10V |
|
|
| 201064.40.04.SS.D | 8W | 4000K | 45° | 677 |
STAINLESS STEEL |
DALI |
|
|
| 201064.40.30.SS.0 | 8W | 4000K | 30° | 713 |
STAINLESS STEEL |
ON/OFF |
|
|
| 201064.30.10.SS.D | 8W | 3000K | 10° | 722 |
STAINLESS STEEL |
DALI |
|
|
| 201064.40.30.SS.D | 8W | 4000K | 30° | 713 |
STAINLESS STEEL |
DALI |
|
|
| 201064.40.10.SS.0 | 8W | 4000K | 10° | 752 |
STAINLESS STEEL |
ON/OFF |
|
|
| 201064.40.10.SS.1 | 8W | 4000K | 10° | 752 |
STAINLESS STEEL |
1-10V |
|
|
| 201064.40.10.SS.D | 8W | 4000K | 10° | 752 |
STAINLESS STEEL |
DALI |
|
|
| 201064.30.04.SS.0 | 8W | 3000K | 45° | 650 |
STAINLESS STEEL |
ON/OFF |
|
|
| 201064.30.04.SS.1 | 8W | 3000K | 45° | 650 |
STAINLESS STEEL |
1-10V |
|
|
| 201064.30.04.SS.D | 8W | 3000K | 45° | 650 |
STAINLESS STEEL |
DALI |
|
|
| 201064.30.30.SS.0 | 8W | 3000K | 30° | 684 |
STAINLESS STEEL |
ON/OFF |
|
|
| 201064.30.30.SS.1 | 8W | 3000K | 30° | 684 |
STAINLESS STEEL |
1-10V |
|
|
| 201064.30.30.SS.D | 8W | 3000K | 30° | 684 |
STAINLESS STEEL |
DALI |
|
|
| 201064.30.10.SS.0 | 8W | 3000K | 10° | 722 |
STAINLESS STEEL |
ON/OFF |
|
|
| 201064.30.10.SS.1 | 8W | 3000K | 10° | 722 |
STAINLESS STEEL |
1-10V |
|
|
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
206000
HYDROFLOOR Asymmetric
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 201070.30.WW.SS.D | 19W | 3000K | wall washer | 1484 |
STAINLESS STEEL |
DALI |
|
|
| 201070.30.WW.SS.1 | 19W | 3000K | wall washer | 1484 |
STAINLESS STEEL |
1-10V |
|
|
| 201070.30.WW.SS.0 | 19W | 3000K | wall washer | 1484 |
STAINLESS STEEL |
ON/OFF |
|
|
| 201070.40.WW.SS.D | 19W | 4000K | wall washer | 1599 |
STAINLESS STEEL |
DALI |
|
|
| 201070.40.WW.SS.1 | 19W | 4000K | wall washer | 1599 |
STAINLESS STEEL |
1-10V |
|
|
| 201070.40.WW.SS.0 | 19W | 4000K | wall washer | 1599 |
STAINLESS STEEL |
ON/OFF |
|
|
| 201070.27.WW.SS.D | 19W | 2700K | wall washer | 1410 |
STAINLESS STEEL |
DALI |
|
|
| 201070.27.WW.SS.1 | 19W | 2700K | wall washer | 1410 |
STAINLESS STEEL |
1-10V |
|
|
| 201070.27.WW.SS.0 | 19W | 2700K | wall washer | 1410 |
STAINLESS STEEL |
ON/OFF |
|
|
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
206000
HYDROFLOOR Dmx Rgbw
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 201068.RW.12.SS.D | 14W | RGBW | 12° | 480 |
STAINLESS STEEL |
DALI |
|
|
| 201068.RW.12.SS.X | 14W | RGBW | 12° | 480 |
STAINLESS STEEL |
DMX |
|
|
| 201068.RW.25.SS.D | 14W | RGBW | 25° | 468 |
STAINLESS STEEL |
DALI |
|
|
| 201068.RW.25.SS.X | 14W | RGBW | 25° | 468 |
STAINLESS STEEL |
DMX |
|
|
| 201068.RW.35.SS.D | 14W | RGBW | 35° | 457 |
STAINLESS STEEL |
DALI |
|
|
| 201068.RW.35.SS.X | 14W | RGBW | 35° | 457 |
STAINLESS STEEL |
DMX |
|
|
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
206000
HYDROFLOOR COMPACT
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 201058.30.10.SS.0 | 8W | 3000K | 10° | 721 |
STAINLESS STEEL |
ON/OFF |
|
|
| 201058.30.30.SS.0 | 8W | 3000K | 30° | 684 |
STAINLESS STEEL |
ON/OFF |
|
|
| 201058.30.04.SS.0 | 8W | 3000K | 45° | 650 |
STAINLESS STEEL |
ON/OFF |
|
|
| 201058.40.10.SS.0 | 8W | 4000K | 10° | 751 |
STAINLESS STEEL |
ON/OFF |
|
|
| 201058.40.30.SS.0 | 8W | 4000K | 30° | 713 |
STAINLESS STEEL |
ON/OFF |
|
|
| 201058.40.04.SS.0 | 8W | 4000K | 45° | 677 |
STAINLESS STEEL |
ON/OFF |
|
|
| 201058.27.10.SS.0 | 8W | 2700K | 10° | 685 |
STAINLESS STEEL |
ON/OFF |
|
|
| 201058.27.30.SS.0 | 8W | 2700K | 30° | 650 |
STAINLESS STEEL |
ON/OFF |
|
|
| 201058.27.04.SS.0 | 8W | 2700K | 45° | 618 |
STAINLESS STEEL |
ON/OFF |
|
|
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
206000
HYDROFLOOR INVISA
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 206002.40.35.SR.D | 15W | 4000K | 35° | 1282 | STAINLESS STEEL (ON REQUEST) | DALI |
|
|
| 206002.40.15.03.1 | 15W | 4000K | 15° | 1350 |
RAL9005 BLACK |
1-10V |
|
|
| 206002.40.15.03.0 | 15W | 4000K | 15° | 1350 |
RAL9005 BLACK |
ON/OFF |
|
|
| 206002.40.15.SR.D | 15W | 4000K | 15° | 1350 | STAINLESS STEEL (ON REQUEST) | DALI |
|
|
| 206002.40.15.SR.1 | 15W | 4000K | 15° | 1350 | STAINLESS STEEL (ON REQUEST) | 1-10V |
|
|
| 206002.40.15.SR.0 | 15W | 4000K | 15° | 1350 | STAINLESS STEEL (ON REQUEST) | ON/OFF |
|
|
| 206002.40.35.03.D | 15W | 4000K | 35° | 1282 |
RAL9005 BLACK |
DALI |
|
|
| 206002.40.35.03.1 | 15W | 4000K | 35° | 1282 |
RAL9005 BLACK |
1-10V |
|
|
| 206002.40.35.03.0 | 15W | 4000K | 35° | 1282 |
RAL9005 BLACK |
ON/OFF |
|
|
| 206002.40.15.03.D | 15W | 4000K | 15° | 1350 |
RAL9005 BLACK |
DALI |
|
|
| 206002.40.35.SR.1 | 15W | 4000K | 35° | 1282 | STAINLESS STEEL (ON REQUEST) | 1-10V |
|
|
| 206002.40.35.SR.0 | 15W | 4000K | 35° | 1282 | STAINLESS STEEL (ON REQUEST) | ON/OFF |
|
|
| 206002.40.55.03.D | 15W | 4000K | 55° | 1218 |
RAL9005 BLACK |
DALI |
|
|
| 206002.40.55.03.1 | 15W | 4000K | 55° | 1218 |
RAL9005 BLACK |
1-10V |
|
|
| 206002.40.55.03.0 | 15W | 4000K | 55° | 1218 |
RAL9005 BLACK |
ON/OFF |
|
|
| 206002.40.55.SR.D | 15W | 4000K | 55° | 1218 | STAINLESS STEEL (ON REQUEST) | DALI |
|
|
| 206002.40.55.SR.1 | 15W | 4000K | 55° | 1218 | STAINLESS STEEL (ON REQUEST) | 1-10V |
|
|
| 206002.40.55.SR.0 | 15W | 4000K | 55° | 1218 | STAINLESS STEEL (ON REQUEST) | ON/OFF |
|
|
| 206002.30.35.SR.D | 15W | 3000K | 35° | 1231 | STAINLESS STEEL (ON REQUEST) | DALI |
|
|
| 206002.30.15.03.1 | 15W | 3000K | 15° | 1296 |
RAL9005 BLACK |
1-10V |
|
|
| 206002.30.15.03.0 | 15W | 3000K | 15° | 1296 |
RAL9005 BLACK |
ON/OFF |
|
|
| 206002.30.15.SR.D | 15W | 3000K | 15° | 1296 | STAINLESS STEEL (ON REQUEST) | DALI |
|
|
| 206002.30.15.SR.1 | 15W | 3000K | 15° | 1296 | STAINLESS STEEL (ON REQUEST) | 1-10V |
|
|
| 206002.30.15.SR.0 | 15W | 3000K | 15° | 1296 | STAINLESS STEEL (ON REQUEST) | ON/OFF |
|
|
| 206002.30.35.03.D | 15W | 3000K | 35° | 1231 |
RAL9005 BLACK |
DALI |
|
|
| 206002.30.35.03.1 | 15W | 3000K | 35° | 1231 |
RAL9005 BLACK |
1-10V |
|
|
| 206002.30.35.03.0 | 15W | 3000K | 35° | 1231 |
RAL9005 BLACK |
ON/OFF |
|
|
| 206002.30.15.03.D | 15W | 3000K | 15° | 1296 |
RAL9005 BLACK |
DALI |
|
|
| 206002.30.35.SR.1 | 15W | 3000K | 35° | 1231 | STAINLESS STEEL (ON REQUEST) | 1-10V |
|
|
| 206002.30.35.SR.0 | 15W | 3000K | 35° | 1231 | STAINLESS STEEL (ON REQUEST) | ON/OFF |
|
|
| 206002.30.55.03.D | 15W | 3000K | 55° | 1170 |
RAL9005 BLACK |
DALI |
|
|
| 206002.30.55.03.1 | 15W | 3000K | 55° | 1170 |
RAL9005 BLACK |
1-10V |
|
|
| 206002.30.55.03.0 | 15W | 3000K | 55° | 1170 |
RAL9005 BLACK |
ON/OFF |
|
|
| 206002.30.55.SR.D | 15W | 3000K | 55° | 1170 | STAINLESS STEEL (ON REQUEST) | DALI |
|
|
| 206002.30.55.SR.1 | 15W | 3000K | 55° | 1170 | STAINLESS STEEL (ON REQUEST) | 1-10V |
|
|
| 206002.30.55.SR.0 | 15W | 3000K | 55° | 1170 | STAINLESS STEEL (ON REQUEST) | ON/OFF |
|
|
